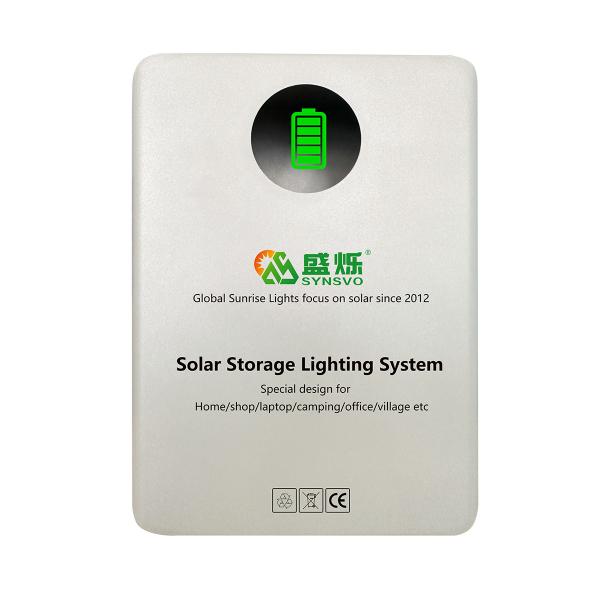

Solar Panel Mounted Generator 3.2-3.6A 50Hz Portable Power Station
Solar Generator 150W/300W 220v
Product Introduction of the portable solar generator with panel
completed set:
| Product Name | Wall Mounted PV Energy Storage System |
| Model NO. | SRE-918 |
| Power | 150W/300W |
| Solar Panel | 30W/60W |
| Size | 22*30cm |
| Charging Method | Solar and charger |
| Battery | 12.8V 20AH(16pcs 3.2V 5AH) |
| Working Environment(℃) | -20~60 |
| Output overcurrent protection(A) | 3.2~3.6 |
| Output voltage | 5V/9V/12V |
| Output current | 3A |
| AC output waveform | Corrective Wave |
| AC output Hertz | 50Hz |
Solar panel installation instruction about the portable solar generator with panel completed set:
1. Please do not install the solar panels on the balcony or
window,to avoid the moving of sun shine being blocked.
2. Please install the solar panels out door, make sure the panels
are not blocked from the sun shine by house or trees, and make
sure there are no electric cable shadows being reflected on the
panels. otherwise it will effect the charging
3. The charging time depends on the sun shine strength and
timing in different areas.
4. In case of long raining or cloudy days, please charge the solar
panels with the original AC adaptor.
Operation method of the portable solar generator with panel completed set:
Function Description
1. Long press and hold the (K1) key to turn on the device, and long
press and hold to turn off the device
2. Press and hold the (K2) key to turn on AC, and the AC OUT symbol
will be displayed on the screen. Press and hold to turn it off.
Automatically shut down after about 15 seconds when unloaded
3. Press and hold the left button to turn on the power, the battery
level is displayed, and the output USB2.1A indicator is on. Long
press to turn off all outputs. Quickly press twice to turn on the
LED, with the LED power required to be on the right. The display
mode is long bright strong light 100% - long bright medium light
50% - long bright weak light 20% - SOS - turn off and cycle through
in sequence. The light panel adopts a 3-string 10 parallel method,
with a total of 30 LEDs
4. Temperature protection: The temperature protection for charging
batteries is 60±5℃, and the recharge temperature is 5℃. The
temperature protection for discharging batteries is 60 ±5℃, and the
playback temperature is 50±5℃.
Application/Usage about the portable solar generator with panel completed set:
Our Solar Generator is Small size, large capacity, light
weight,easy to carry,safe and reliable,widely used for indoor or
outdoor. Such as family, office,travel, camping, emergency,fishing,
hunting, farm or the job sites weekend trip or wherever you need
power anytime anywhere.
Advantage/Selling points of the portable solar generator with panel completed set:
The shell of this product is made of aluminum. The aluminum alloy
frame not only has high durability, wide application range and good
decorative effect, but also has good strength and mechanical
properties in low temperature environment. The overall design is
humanized, the outer frame is beautiful and generous, and the four
corners are arc angles, which can effectively prevent sharp corners
from scratching people. And it's very light. It's very optional
when you go out, whether it's portable or diagonal.
Service for u:
Dear customer:
Before sending us your preferred inquiry, if you can let us know:
1. Load power;
2. Input voltage
3. Output voltage
4. AC plug type;
5. Order quantity;
We will serve you wholeheartedly.
