Characteristics of the solar home lights:
This inverter storage and control integrated machine is a highly intelligent product integrating digitization, informatization and networking. It provides a powerful information acquisition system, signal processing system, detection system and perfect protection system. It is widely used in various power consumption environments, with personalized design and friendly man-machine dialogue function. LCD touch screen is the latest power display module developed by our company, which adopts the popular intuitive graphical operation interface. Compared with the ordinary LCD display module, the touch screen display module has no complex operation. Users can directly click the analog button on the screen to obtain the corresponding information, and the operation is simple and easy to understand.

Advantage/Selling points:
1. The inverter adopts all-digital vector control technology with real-time processing of DSP, MCU a DDC, which can accurately control various parameters of the machine and control over it comprehensively.
2. The combination of advanced IGBT and high- frequency pulse width modulation technology (MPPT) reduces the system noise and power loss, ensuring that customers can obtain high-quality voltage out and the highest benefit under various workload conditions.
3. The output is equipped with an isolation transformer, and there is no DC in the load of the machine equipped with the isolation transformer, this can effectively protect the switching power supply of computers, networks and communication equipment from being damaged by DC current, and at the same time, it can also present excellent dynamic performance for nonlinear loads, improving the load capacity of the machine with good load compatibility.
4. Perfect protection functions, with AC input overvoltage and undervoltage protection, output
overvoltage and undervoltage protection, output overload short circuit protection, early warning
protection for battery undervoltage, internal overtemperature protection for the machine, greatly ensure the stability and reliability of the system operation.

Operation method:

1. Operation steps for normal shutdown of inverter power supply

2. Turn off the load device switches one by one;

3. Disconnect the AC output switch of the inverter power supply;

4. Disconnect the AC input switch of the inverter power supply;

5. Disconnect the DC input switch of the inverter power supply (Lithium battery switch);

6. Disconnect the front-end AC input power supply

Attention:
The company shall have the right not to guarantee the quality of the product for the following cases.
1. The whole machine and parts have exceeded the free warranty period;
2. The product is damaged during transportation;
3. Incorrect installation, modification or use not in accordance with the requirements of the user manual;
4. Operation in very harsh environment beyond the descriptions in this user manual;
5. Machine failure or damage caused by installation, repair, modification or disassembly not by our
company service agencies or personnel.
Product failure caused by the above situation, and the customer requires maintenance services. After
being judged by the company's service department, payable maintenance services can be provided.

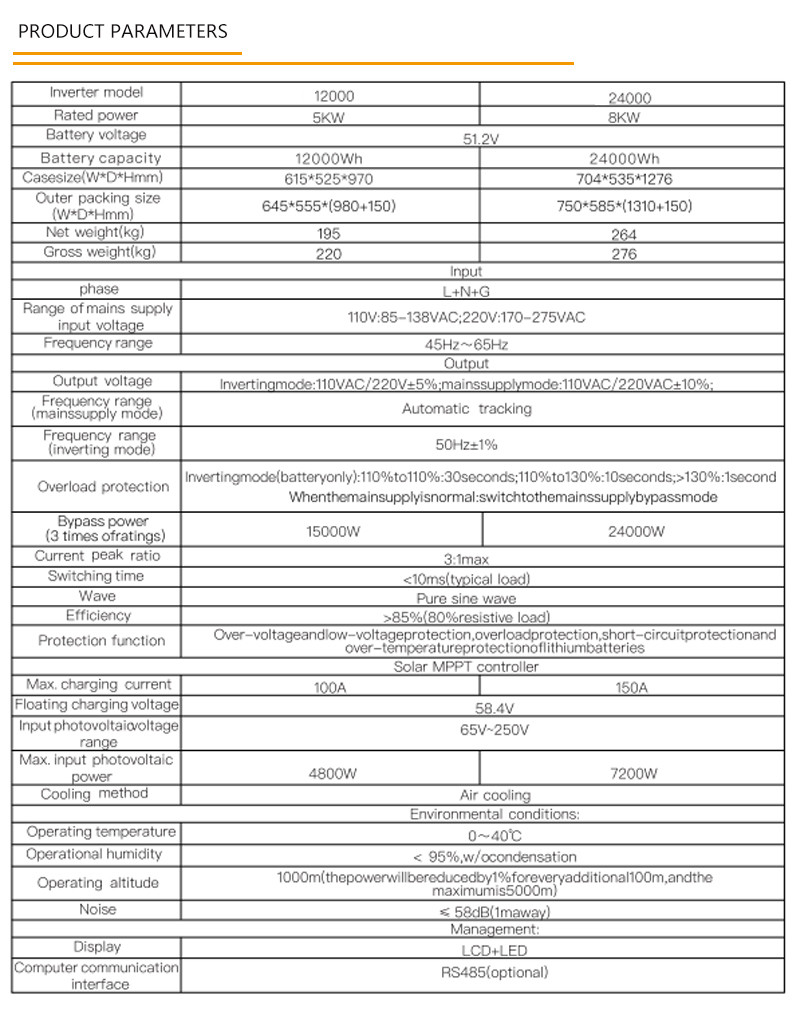

Product Introduction:

Rated power	5kw 8kw
Keywords	Power Bank External Battery Charger
Phase	L+N+G
Range of mains supply input voltage	110V: 85-138VAC;220V: 170-275VAC
Frequency range	45Hz~65Hz
Cooling temperature	0~40ºC
Operating humidity	<95%,W/condemnation
Material	Aluminium Alloy
AC Output	110V/220V pure sine wave
Controller	MPPT Solar Charge Controller
